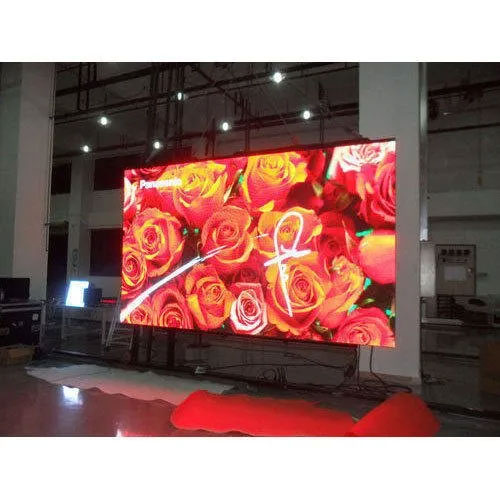

Stage Background Screen
| Resolution | 192mm*192mm |
| Pixel Pitch | 6 mm |
| Dimension | 576mm*576mm |
| Application/Usage | Outdoor |
| Brand | nation star |
| Active Screen Dimensions | customized |
| Model Name/Number | p6 |
| Lighting Color | full color |
| Input Voltage | 240 volts |
| Life Span | 100000 hours |
| Display Shape | Rectangle |
| Connectivity | Ethernet, RS232, Wi-Fi |
| Display Technology | Square Matrix |
| Voltage | 220-240 V AC |
| Frequency | 50 Hz |
| Operating Voltage | 240 volts |
| Character Capacity | depends on users |
| Brightness | 6500 cd/m2 |
| Viewing Angle | 120 |
| Weight | 10 kg |
| Power Consumption | 200 watt |
| Warranty | 3 Years |
| IP Rating | ip67 |
| Mounting Type | Wall Mounted |
| Certification | bis |
| I Deal In | New Only |
| Waterproof | Yes |
stage background screen is display different types of video and animation in more smart way.
Specification
| P6 Outdoor Rental | |
| Best viewing distance | 6-50 m |
| Viewing angle | 140° W ; 140 °H |
| Input power frequency | 60 Hz |
| Defect rate | ≤0.0001 |
| Maintenance mode | front / back |
| Average power consumption | 400 W/ m2 |
| Max power consumption | 800 W / m2 |
| Operating temperature | –20??? ~ +60 ??? 10% ~ 95% RH |
Product Description
| P6 Outdoor LED module | |
| Pixel pitch | 6 mm |
| Pixel configuration | SMD 3535 |
| IC | MBI 5124 /ICN2038S |
| LED lamp | Nation Star / Epistar / Kinglight |
| P6 Outdoor LED module | |
| Module size | 192mm*192 mm |
| Module resolution | 32*32pixel |
| Pixel density | 27,777 dots/m2 |
| Scan | 1/8S |
Beautiful design, seamless assembly, high smoothness, good overall effect, easy installation and disassembly, low maintenance cost in the later stage.
| P6 Outdoor LED cabinet | |
| Cabinet size | 576mmx576mm / 768mmx768mm |
| Cabinet resolution | 96* 96pixel /128*128pixel |
| Cabinet material | die-casting aluminum |
| Cabinet weigt | 35 kg/m2 |
| Controller card | Nova Star /Linsn /Colorlight |
| Control method | Synchronization |
